LC LED 300TW2D: 3mm White LED
Diffused Lamp
|
PRODUCT DESCRIPTION |
|
|
(1) RoHS Compliant
Part |
(4) Moisture &
UV Resistance Epoxy |
|
(2) Milky Diffused
Len |
(5) Available in
white, blue, red, yellow and green |
|
(3) 75 Degree Light
Distribution |
|
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Reverse Voltage (IR
= 100mA) |
5 |
V |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Avg. Forward Current (Pulse Operation) |
30 |
mA |
|
Operating Temperature |
-40
to +100 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
(1) Pulse conditions of 1/10 duty cycle and
0.10msec max. pulse width; for long operating
life max. of 20mA recommended
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward Voltage |
VF |
IF
= 20mA |
3.0 |
|
3.6 |
V |
|
Reverse Voltage |
VR |
IR
= 100mA |
|
|
5 |
V |
|
Dominant Wavelength |
lD |
IF
= 20mA |
5000 |
6500 |
K |
|
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
|
75 |
|
Deg. |
|
Luminous Intensity |
IV |
IF
= 20mA |
3,000 |
5,000 |
mcd |

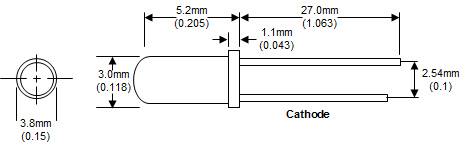

DEVICE
DRAWING
|
LC LED Corporation |
